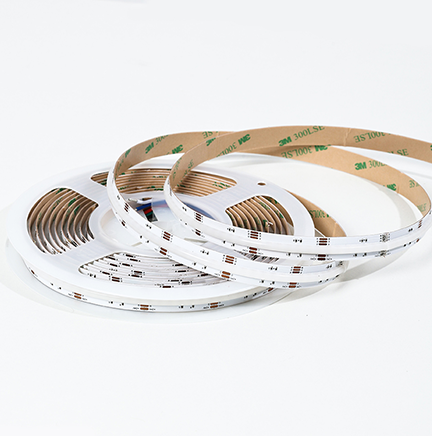

产品名称 : 896L COB LED Strip Light
产品型号 : CK-COB-896-DC24V-RGBW-12mm-IP33
质保 : 3
认证: cETLus CE
- 产品参数
- 特征
- 数据下载
|
Part NO. |
CK-COB-896-DC24V-RGBW-12mm-IP33 |
|
Chip Quantity /M |
896pcs/m |
|
Dimension |
5000*12*2.1mm |
|
PCB |
12mm |
|
Working voltage |
DC 24V |
|
Wattage /M |
18W/m |
|
CCT Available |
RGBW |
|
Light Efficiency |
High brightness |
|
CRI |
>90 |
|
Wire length |
150mm |
|
Beam angle |
180 ° |
|
Cutable Length |
31.25mm |
|
Working temperature |
-20~40 °C |
|
Storage temperature |
-25~60 °C |
|
IP rank |
IP33 |
Light source: 896 chips/m, COB, 180° wide beam angle
High density LED, with COB technology, can be perfect replacement of traditional SMD strips
Color change multi RGB color mixed with white colorPCB: 12mm 2OZ double layer PCB
Tape: heat conductive tape for better heat dissipation
low voltage drop
3 years warranty
