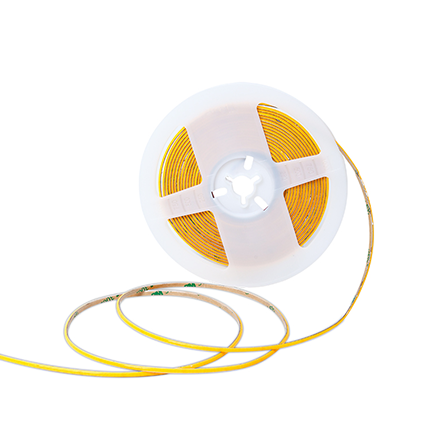

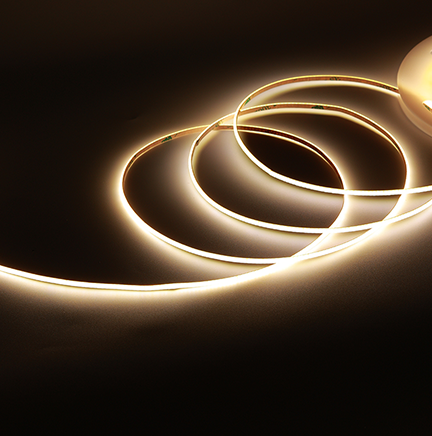

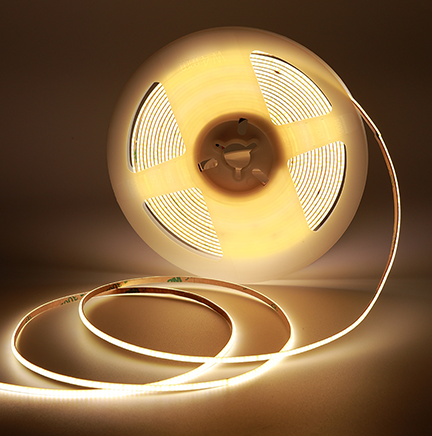

产品名称 : 480L COB LED Strip Light
产品型号 : CK-COB-480-DCXX-XX-CRI90-3mm-IP33
质保 : 3
认证: cETLus CE
- 产品参数
- 特征
- 数据下载
|
Part NO. |
CK-COB-480-DCXX-XX-CRI90-3mm-IP33 |
|
Chip Quantity /M |
480pcs/m |
|
Dimension |
5000*3*2.1mm |
|
PCB |
3mm |
|
Working voltage |
DC 24V |
|
Wattage /M |
5W/m |
|
CCT Available |
3000K/4000K/6000K |
|
Light Efficiency |
>90lm/W |
|
CRI |
>90Ra |
|
Wire length |
150mm |
|
Beam angle |
180 ° |
|
Cutable Length |
50mm |
|
Working temperature |
-20~40 °C |
|
Storage temperature |
-25~60 °C |
|
IP rank |
IP33 |
Light source: 480 chips/m, COB, 180° wide beam angle
High density LED, with COB technology, can be perfect replacement of traditional SMD strips
CRI over 90
PCB: 3mm 2OZ double layer PCB, Ultra narrow
Tape: heat conductive tape for better heat dissipation
low voltage drop
3 years warranty
